DNS Proxywall

Compare Product Editions

Requirements

Latest release	5.67 m_str;, 24 Jul 2024 , [Change Log, Previous Releases]
Supported networking	Ethernet, IPv4, IPv6, TCP, UDP, DNS.
Traffic transformation engine	Kernel-mode network driver.
Prerequisites	.NET 4.5.2, up-to-date root certificates (or it will take 2 minutes to start).
Supported OSes	Windows 7*, 8, 8.1, 10, 11, Server 2008 R2*, Server 2012, Server 2012 R2, Server 2016, Server 2019, Server 2022, Server 2025. *For Windows 2008 R2 and 7, required Service Pack 1 + KB3033929 (SHA-2 digital signing). *For Windows 8.1, Server 2012 R2, required KB2995730 .
Recommended hardware	CPU: 1 GHz and above Graphics: modern graphics card
Additional hardware required	none

Overview

Domain Name System (DNS) is how web browsers obtain IP addresses of Internet servers. DNS Proxywall uses a flexible set of rules to restrict access to websites by name patterns and geographical locations. It can also act as a proxy that provides filtering and caching of server names for other computers. To better understand the options when choosing DNS protection, see DNS firewall, DNS proxy, and DNS proxywall. Which one to choose? For a technical look at the protocol itself, see The DNS protocol explained .

DNS Proxywall

DNS Proxywall combines DNS firewalling and proxying in one product. It has a number of features that excite even the most demanding users:

• DNS cache - accelerates web browsing by resolving names instantly.
• Editing of DNS records - allows specifying custom IP addresses for DNS names.
• DNS monitoring - provides real-time visibility of resolved domain names and their countries. On wired networks it can also show which DNS names are resolved by other computers. The log can be viewed and stored for later analysis.
• Activity view filters - keep only important events (blocked, remote resolved, cache resolved, etc.) visible, filtering out noise.
• DNS performance measurement - measures DNS packet round-trips to gauge resolution speed. Multiple metrics help analytical decisions about upstream servers and proxy clients.
• DNS Proxy - allows other computers to use its cache or forwarding capabilities (standard DNS, TCP tunnel, or SSL/TLS tunnel) concurrently.
• Cascading - chains multiple DNS Proxywall servers to aggregate DNS traffic into tunnels and route it flexibly.
• Authentication - secures proxy communication using self-signed certificates and/or IP filtering.
• Load balancing - allows choosing algorithms for distributing DNS requests.
• IP Firewall - blocks direct (non-DNS) IP access, ensuring all traffic resolves through DNS.
• Geo tools - quickly identify territories of server addresses.
• And more...

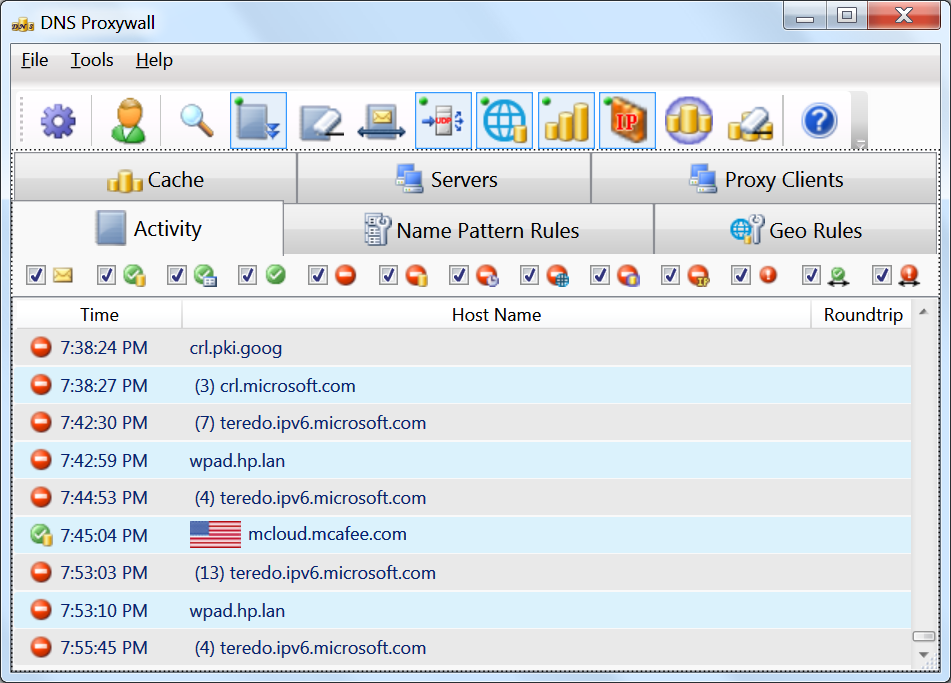

DNS Monitoring

IMPORTANT: When used on a Virtual Machine, accidental changes by a user to the rules may affect Remote Desktop (RDP) traffic and result in a user lockout. For instructions on how to restore RDP connectivity for a VM, see KB article Restoring Remote Desktop (RDP) connectivity to an Azure VM after a user lockout .

DNS Proxywall offers extensive capabilities for DNS traffic monitoring. It monitors the standard DNS traffic between the local computer and remote DNS servers:

• Outgoing DNS traffic originated on the local computer and sent to remote DNS servers
• Incoming and outgoing traffic between DNS clients and DNS Proxywall
• Incoming DNS traffic for local DNS server (if there is a DNS server on the local computer)
• Promiscuous monitoring of traffic between other computers on the local wired network

The activity log shows the status and the action that was taken on the traffic:

• - DNS query was sent, but the response was not yet received.
• - DNS request was successfully resolved via local DNS cache.
• - DNS request was successfully resolved via internal table of permanent host addresses .
• - DNS request was successfully resolved by DNS server.
• - DNS request was blocked by name pattern rules.
• - DNS request was blocked because a cached response from the DNS server contained a name resolution refusal.
• - DNS request was blocked due to timeout (exceeded timeout threshold).
• - DNS request was blocked due to geography.
• - DNS request was blocked due to DNS cache only mode and the name was not in the cache.
• - non-DNS (direct address) connectivity was blocked by the IP firewall because the IP address does not have a matching record in the cache.
• - DNS request was refused by the server (the DNS server was unable to resolve the name).
• - DNS request was picked up in promiscuous monitoring mode and was resolved by DNS server for some other computer.
• - DNS request was picked up in promiscuous monitoring mode and indicates that the failure to resolve the name was communicated between two other computers.

Settings

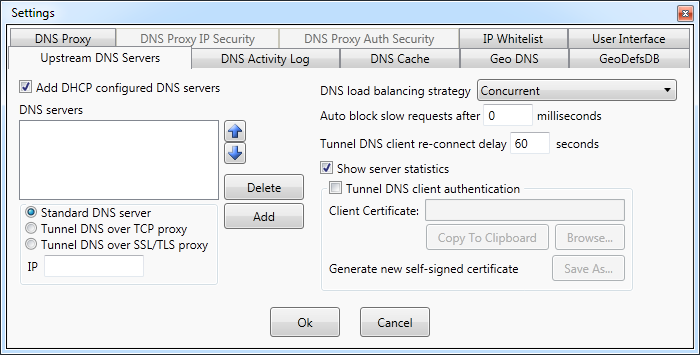

Upstream DNS Servers

DNS Proxywall can forward packets to other DNS servers. Such DNS servers are called 'upstream' servers since they are located up the stream. The upstream DNS servers can be configured automatically by the program or specified manually.

The Add DHCP configured DNS servers option automatically adds to the list all standard DNS servers configured when the computer connects to the network (during the DHCP configuration phase). DHCP-configured servers are standard DNS servers that accept incoming requests using the DNS protocol over UDP. The upstream servers can also be added by manually specifying their IP addresses. Only the following types of upstream servers are currently supported:

• Standard DNS server - a regular server, the type most often used on the Internet for DNS resolution. Such servers use the DNS over UDP protocol.

• Tunnel DNS over TCP proxy - a server that uses a proprietary DNS over TCP protocol, which wraps DNS traffic into a single TCP tunnel connection to the upstream DNS Proxywall.

• Tunnel DNS over SSL/TLS proxy - a server that uses a proprietary protocol, which wraps DNS traffic into a single TCP-over-SSL/TLS encrypted tunnel to the upstream DNS Proxywall.

When forwarding to multiple upstream DNS servers, DNS Proxywall uses a load balancing strategy, which includes the algorithm for server selection. Currently supported algorithms are:

• Local Only Unchanged -
• First Server Only - all requests are sent to only the first server on the list.
• Round Robin - a request is sent to the first server on the list. The next request is sent to the next server on the list, and so on.
• Round Robin on timeout - all requests are sent to the first server on the list until its first timeout. Then, all requests are sent to the next server on the list, and so on.
• Concurrent - requests are sent to all DNS servers simultaneously. The first received response is taken as the result.

Sometimes requests forwarded to upstream DNS servers take too much time. The Auto block slow requests option allows specifying the timeout after which a lack of response is treated as a response with refusal (rejection).

When an upstream connection is a tunnel to another DNS Proxywall, the connection is maintained as a keep-alive connection. It does not break after each request. If for any reason the connection breaks, DNS Proxywall would attempt to re-connect after the specified delay. This delay gives the network and the upstream DNS Proxywall some time to resolve the issue.

All statistics on the number of blocked queries, the number of responses from cache and from remote servers are displayed on the Servers tab of the main window. The settings option Show server statistics enables that Servers tab.

When an upstream connection is a TCP or SSL/TLS tunnel to another DNS Proxywall, authentication can be used to prevent unauthorized access. The verification of access is performed using certificates which could be standard certificates issued by certificate authorities or self-signed certificates. The Tunnel DNS client authentication option enables such authentication. Once authentication is enabled, the DNS Proxywall provides the same certificate to all upstream servers.

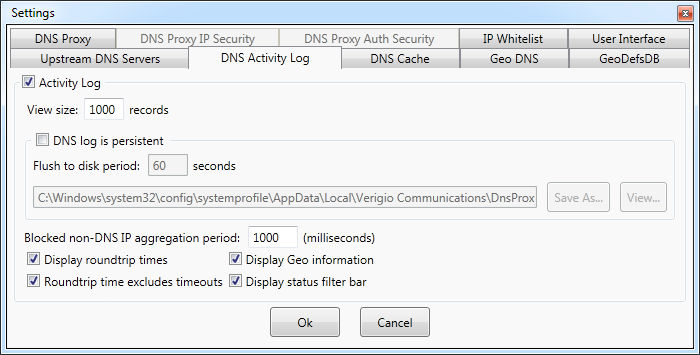

Settings - DNS activity log

The activity log shows all DNS-related requests and responses. The View size setting specifies the number of records shown within the user interface window. The default value is 1000. The user interface is a performance-demanding part of the application. Therefore, smaller values improve overall performance on servers and workstations with low-end graphics cards.

The activity log can be persistent (stored into a file). This feature can be enabled with the DNS log is persistent checkbox. The persistent log is stored (flushed) to disk periodically with the interval specified in Flush to disk period. Activity log files can grow to a very large size. For that reason, they are rotated every day. Each day's log is stored within the same folder, in a file with a different suffix. The location of the logs can be changed. The logs are produced by the service component of the DNS Proxywall. Therefore, they keep growing even when the user interface is not running. The default location for the logs is
"C:\Windows\system32\config\systemprofile\AppData\Local\Verigio\DnsProxywallSvc\Logs\".

When DNS Proxywall blocks IP addresses, the number of blocked packets could be astronomical. For that reason, the records with the same IP are aggregated and reported as a single line. The aggregation interval for IP blocking can be set in Blocked non-DNS IP aggregation period . Other attributes related to resolved and blocked records can be added or removed from the view.

• Display round-trip times - shows on the screen the time it took to resolve a DNS record. It is the round-trip from this computer to the DNS server. It is not related to round-trip to the actual server destination stated within the DNS record.

• Round-trip time excludes timeouts - excludes timed-out requests (DNS server did not respond) from round-trip calculation. When DNS servers do not respond for any reason, this distorts the calculation of average values. Excluding such abnormalities allows calculating a more objective picture of performance.

• Display geo information - shows the flag of the territory associated with the IP address. If the DNS record contains multiple IPs in different territories, only the first territory is shown.

• Activity view filters

  displays the filter bar at the top of the log window with checkboxes to filter different types of activity events. These filters affect only the view and not the persistent log.

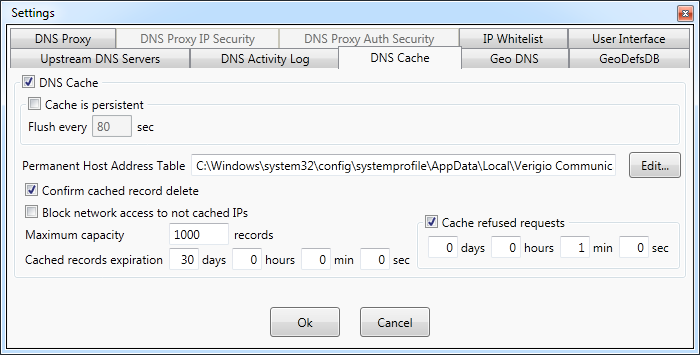

Settings - DNS cache

DNS Proxywall maintains its own DNS cache. All requests and responses are stored within that cache. When a request is resolved via the cache rather than via a remote DNS server, it saves time on the round-trip packet travel. The total number of cache requests and resolves per DNS server is displayed on the Servers tab of the main window. By default, the cache is kept in memory and reset each time the DNS Proxywall service restarts. The option Cache is persistent forces the cache to be saved on disk periodically and loaded upon DNS Proxywall service start.

The cache contains records that come from other (upstream) servers. For hosts that have permanent IP addresses, DNS Proxywall has PermanentHostAddressTable.hostaddr file where permanent IP addresses for server names can be specified. This file is used during IP address resolution before the cache lookup and before sending packets to remote (upstream) servers. Its functionality is similar to the hosts file on Windows. The format is similar to the hosts file as well.

Each line could be a blank line, a comment line, or a line with an IP address specification.
[*.]domainname IPAddr1[,IPAddr, ...] [Category] [# comments]

Examples

• The exact case-insensitive match for verigio.com
  verigio.com 192.168.1.1 PermanentHostAddressCategory
  The PermanentHostAddressCategory is a single word tag that describes the host.
• Case-insensitive match to verigio.com and all subdomains
  *.verigio.com 192.168.1.1,192.168.1.2 PermanentHostAddressCategory

The Confirm cached record delete option forces the user interface to prompt for confirmation when the user attempts to manually delete record(s) from the cache. DNS Proxywall supports the use-only-from-cache mode when only previously resolved and cached IP addresses are used while all other attempts to resolve new addresses are automatically rejected. The use-only-from-cache mode is activated by Block network access to not cached IPs option.

Other cache parameters can be set as well.

• Maximum capacity - maximum cache capacity beyond which the older records are replaced by the new ones.

• Cached records expiration - force expiration of cached DNS records. This option helps to keep DNS records up-to-date.

• Cache refused requests - whenever a request is rejected with the status 'no such server', the record can be cached so the subsequent requests to non-existent servers would fail faster.

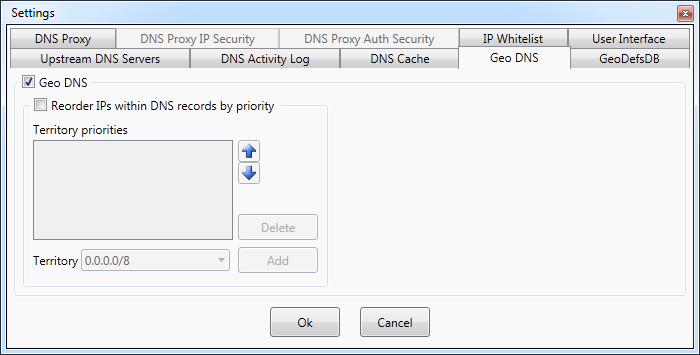

Settings - Geo DNS

Geo DNS allows looking up the country of an IP address. It also supports geographical prioritization, which is the reordering of IP addresses within each DNS record according to a specified priority list. The IP addresses belonging to countries at the top of the list will be used for connectivity first. This improves connection performance when connectivity is with hosts located nearby rather than far away. The geographical prioritization can be enabled with Reorder IPs within DNS records by priority . The countries with higher priority should be placed at the top of the Territory priorities list. The dropdown box contains all the territories and networks that can be added to the priority list. NOTE: it sometimes takes up to 1 minute to populate this dropdown box at first.

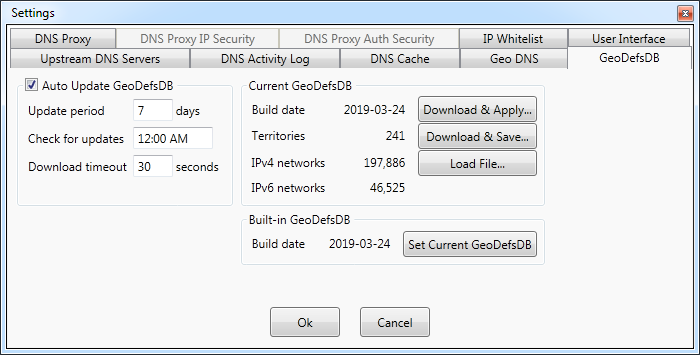

Geo Definitions Database (GeoDefsDB) update settings

The Geo definitions (Geo IP) database contains mappings between geographical territories and IP addresses. This database is stored in a proprietary format. The program comes with an internal (embedded) Geo IP database that is used in the absence of later database versions. This embedded database can be set as the primary (active) database by clicking the Set Current GeoDefsDB button. Updates to the Geo IP database can be downloaded from our website using this settings page, or they can be set to download automatically at a predefined time. The initial time at which the download is performed is generated randomly upon the first program start.

The database can be set to automatically download at the specific time of day with a period of several days. The settings for auto download can be found under the Auto update GeoDefsDB section.

Geo definitions can also be downloaded manually and saved into a file using the Download and Save... button. This helps to manually manage which geo definitions are used. Loading a geo definitions database can be done with the Load File... button.

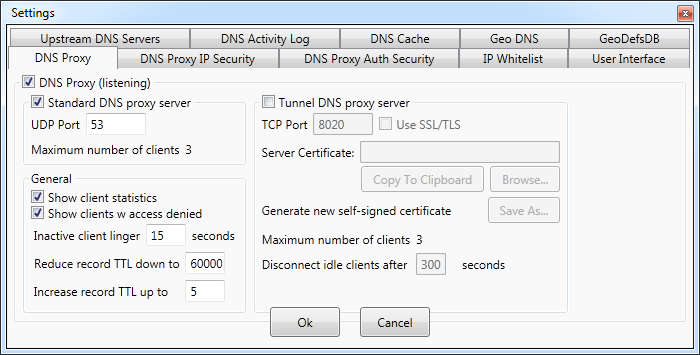

Settings - DNS proxy

DNS Proxywall can act as a DNS server to other computers on the network. The standard DNS server (proxy) functionality is enabled by the Standard DNS proxy server setting. When this functionality is enabled, DNS Proxywall listens for incoming DNS requests on a UDP port and sends responses based either on its own cache or on responses from the upstream DNS servers. The standard DNS server (proxy) functionality supports the widest range of DNS clients from personal computers to mobile phones.

DNS Proxywall also supports tunneled communication. The tunneled communication is a proprietary Verigio protocol and is supported only for traffic between DNS Proxywalls. This protocol packages all DNS traffic into a single TCP connection. This feature is commonly used for aggregation of DNS traffic for forwarding to centralized server(s) via the reliable TCP protocol. The tunneled communication listener can be turned on with the Tunnel DNS proxy server option. TCP communication can also be encrypted with the SSL/TLS protocol on top of TCP.

When encryption is enabled with Use SSL/TLS, both communicating sides use certificates to encrypt the traffic. Those certificates can be issued by a standard certification authority (CA) or self-issued and self-signed. When two sides start communication with enabled SSL/TLS, they verify each other's certificates using the SHA-1 checksum. The client knows SHA-1 of the server certificate and the server knows SHA-1 of the client certificate. They both verify SHA-1 of each other, and only then proceed to establishing the connection.

TCP is a connection-oriented protocol, which means that a connection between a server and a client exists until one of the sides decides to disconnect. To prevent multiple clients from consuming the server's resources by staying idle, the Disconnect idle clients after option forces the disconnection of such clients after the specified timeout. When disconnected clients become active again, they would re-connect to DNS Proxywall.

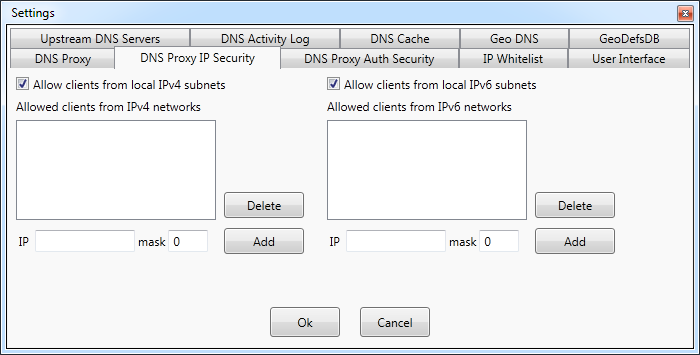

Settings - DNS proxy IP security

Placing a personal DNS proxy on the Internet could be quite risky without the proper security. DNS Proxywall supports verification of clients by IP addresses. Only requests coming from the specified IP addresses and subnets are processed by the program. Other requests are simply ignored.

The options Allow clients from local IPv4 subnets and Allow clients from local IPv6 subnets automatically add IP addresses of all computers on the local network to the list of allowed client IPs. Whether an IP is on a local or non-local network is determined by the network mask configured by DHCP when connecting to the network.

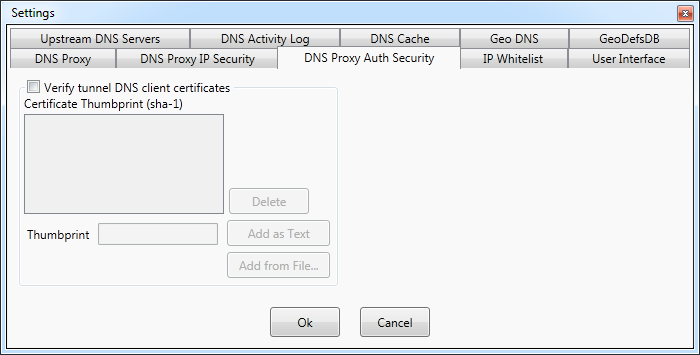

Settings - DNS proxy Auth security

The next level in securing the DNS Proxywall in proxy mode is the certificate authentication security. This feature is supported only for tunnel-based communication: DNS over TCP, or DNS over SSL/TLS. It allows authenticating DNS clients regardless of their IP addresses. In other words, it works independently from IP security.

DNS Proxywall verifies SHA-1 (a.k.a. Thumbprint) hashes of digital certificates provided by clients. The connection is established only when the certificates match. Verification of client certificates is enabled via the Verify tunnel DNS client certificates option. The SHA-1 hashes of allowed certificates can be added to the list as hexadecimal text using Add as Text or calculated from the exact client certificate file using Add from File. Hexadecimal SHA-1 text of a certificate can be obtained using either a web browser or just by viewing the special fields of a certificate. The calculation of SHA-1 can be performed on *.p12 (Personal Information Exchange) files. Such files can be encrypted with a password as well.

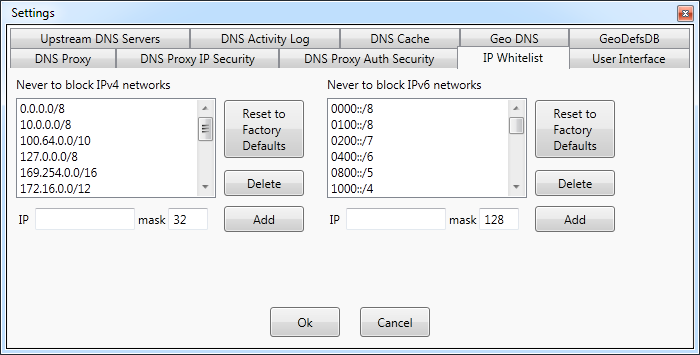

Settings - IP Whitelist

DNS Proxywall rules can block a wide range of IP addresses via Geo DNS or by blocking non-DNS IPs. Sometimes, it is important to guarantee that communication with the local network and certain other IP addresses is not blocked. The IP Whitelist allows excluding IP addresses from such blocking. Whenever DNS Proxywall is managed in the cloud via Remote Desktop, adding the administrator's own IP address to the whitelist prevents an accidental lockout caused by a rule change.

By default, whitelists contain IP addresses that are considered to be special addresses that rarely require any blocking. Whenever changes to the whitelist need to be reverted, the Reset to Factory Defaults button resets each whitelist to its original state.

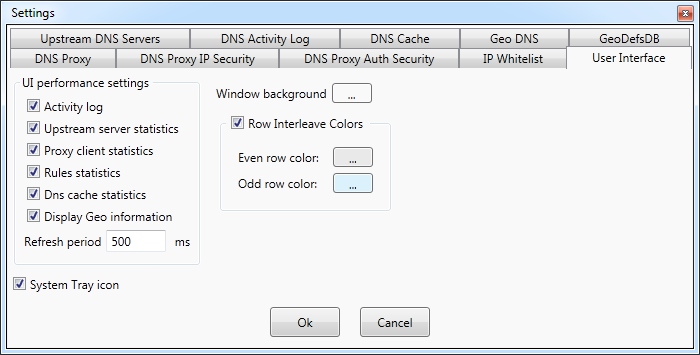

Settings - User Interface

DNS Proxywall has a very dynamic graphical interface. Not all servers have high-end graphics cards that can render such graphics efficiently. Therefore, adjusting UI performance is one of the ways to improve overall system performance. The DNS Proxywall user interface is needed only for managing the DNS Proxywall service. Once the settings are set, the UI can be closed completely. In cases where the UI needs to be on and overall performance matters as well, the UI performance settings panel allows adjusting various graphical features to better suit the requirements.

• Activity log - enables or disables activity logging. It is the equivalent of the setting on the DNS Activity Log tab.
• Upstream server statistics - enables or disables calculation and display of statistics for upstream DNS servers. It is the equivalent of the Show server statistics option on the Upstream DNS Servers tab.
• Proxy client statistics - enables or disables calculation and display of statistics for proxy clients. It is the equivalent of the Show client statistics option on the DNS Proxy tab.
• Rules statistics - enables or disables calculation and display of statistics for name pattern rules.
• DNS cache statistics - enables or disables calculation and display of statistics for each DNS cache record.
• Display Geo information - enables or disables displaying of country flags next to IP addresses.
• Refresh period - refresh period for all statistics. The smaller it is, the more overhead it results in.

System tray icon -- allows the user interface to be minimized to the system tray area of the taskbar upon close, instead of exiting.

Notes:
